3-circuit CCT adjustable LED track lights merge versatile circuit control with switchable color temperatures. This article explores how these systems redefine lighting design for commercial and residential applications.

1. What is a 3-Circuit CCT Adjustable LED Track Light?

A 3-circuit tracks with three independent electrical circuits, enabling separate groupings of lights on one track. Combined with 3CCT (Correlated Color Temperature) adjustability, users can customize white light hues—from warm (2700K) to cool (6500K)—per circuit or fixture. 1 PC track light can be switchable 3CCT, like 2700K-3000K-4000K or others to be customized.

Core Components:

• Track System: Three conductive rails allow zone-specific circuiting.

• Adjustable Fixtures: Modular heads with dual LED chips (warm/cool white) blend to achieve any CCT.

• Controls: Wall switches, remotes, or apps manage circuits and CCT settings.

2. How 3CCT adjustable led track light Works: Technology Breakdown

Circuit Flexibility

Divide lights into three groups (e.g., task, accent, ambient lighting), each controlled independently.

Example: Retail stores illuminate merchandise, aisles, and signage on separate circuits.

CCT Adjustment Mechanism

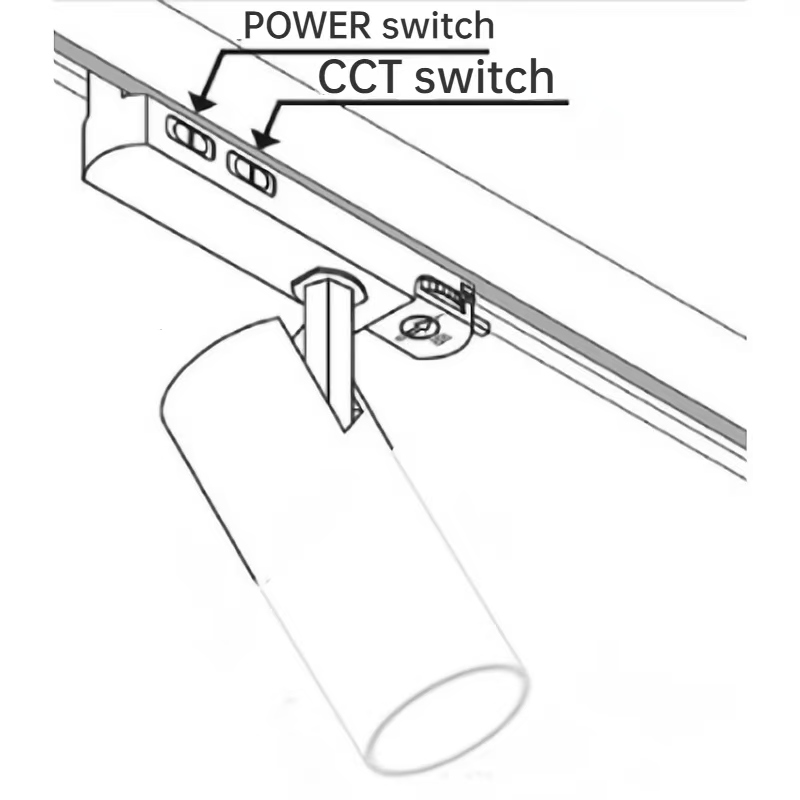

Dual-Chip LEDs: The ability of CCT switchable allows users to change the color temperatures in a wide range of 2700K-3000K-4000K/3000K-3500K-4000K/3000K-4000K-6000K switchable.

3. Key Benefits of 3-Circuit CCT Selectable Track Lighting

Dynamic Ambiance: Switch from cozy (2700K) for dinners to energizing (5000K) for work. You just need 1pc track light to meet different lighting requirements.

Energy Efficiency: LEDs consume ≤15W/fixture; circuits minimize wasteful illumination.

Enhanced Productivity: Optimal CCT improves focus in offices (>4000K) or relaxation in hotels (<3000K).

Cost and Stock Saving: With the ability of CCT adjustable, users don't need to stock too many, just to choose the housing color they need.

4. Top Applications

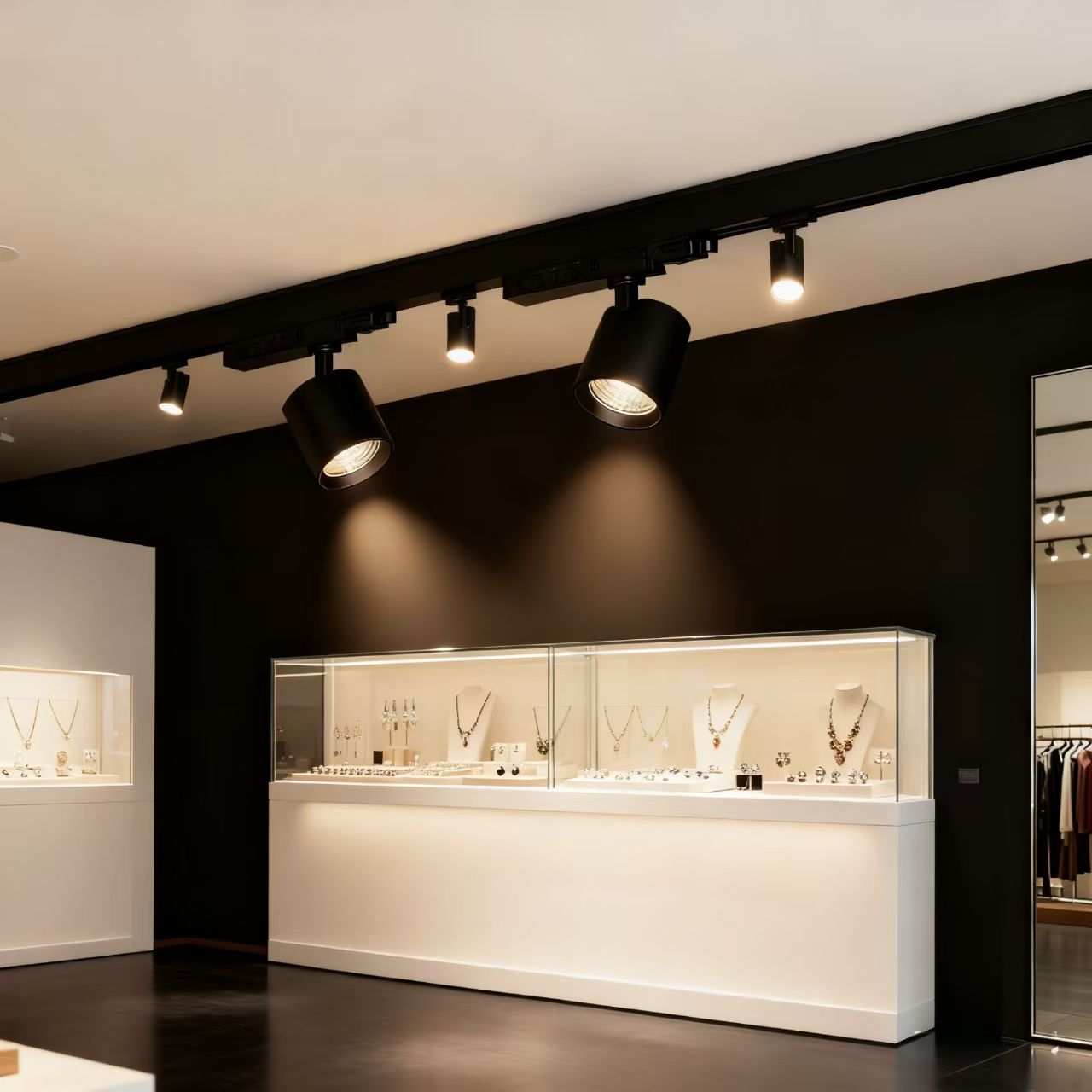

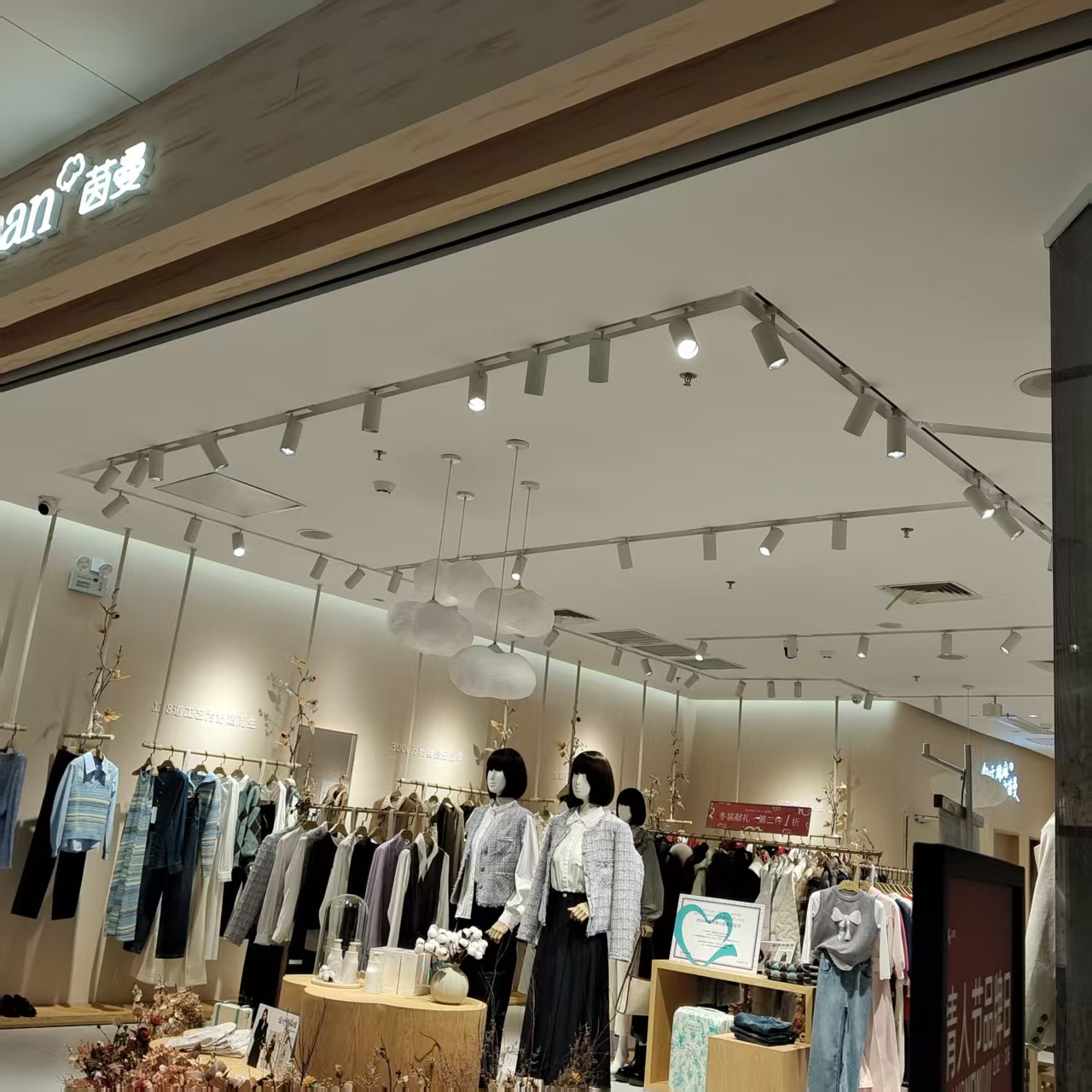

• Retail: Highlight products (4000K) while keeping aisles bright (5000K). With this CCT switchable LED track light, users don't need to stocks too many. The only thing they need to do is to choose the body color and to switch the bottom to get certain color temperatures they need.

• Galleries: Adjust CCT to match artwork tones and reduce glare.

• Homes: Kitchen tasks (cool white) vs. living room ambiance (warm white). To change the color tempertature to certain one to create a warm atmosphere for homes.

• Offices: Balance collaborative (3500K) and desk (4500K) zones.

5. Choosing the Right CCT track light System: 6 Critical Factors

• Track Compatibility: H-, J-, or L-type tracks? Verify fixture-track alignment.

• CCT Range: Ensure tunability covers 2700K–6500K.

• Dimming Support: Confirm 0-10V/DALI/Triac dimmable compatibility for mood control.

• IP Rating: Use IP20+ for humid areas (e.g., kitchens).

• CRI (Color Rendering): ≥90 CRI for true color accuracy.

• Warranty: Opt for brands offering 5+ years.

6. Installation & Maintenance Tips

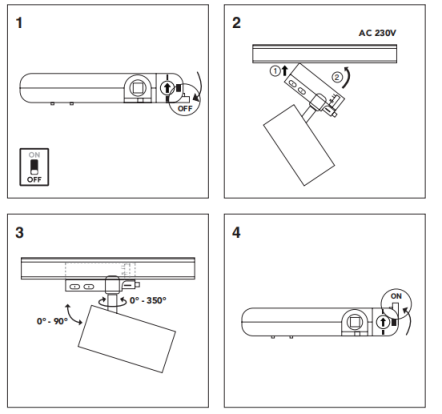

Installation:

Turn off power. Mount tracks parallel to ceilings/walls.

Connect each circuit to designated breakers. Snap fixtures into tracks.

Pro Tip: Label circuits during setup for intuitive control.

Maintenance:

Dust fixtures monthly with microfiber cloths.

Check track connections annually to prevent voltage drops.

Replace drivers (not LEDs) if flickering occurs.

7. FAQ: 3-Circuit CCT Adjustable Track Lights

Q1: Can I retrofit existing tracks?

Yes, if tracks support 3 circuits. Verify voltage (220V/240V) and connector type.

Q2: Are these dimmable?

Yes, the CCT track lights are triac dimmable.Please maker sure your dimmers are comppatilbe with this CCT track light.

Q3: What’s the lifespan?

50,000–100,000 hours (≈15 years at 10 hrs/day).

Q4: Can I mix fixture styles on one track?

Absolutely—combine spotlights, pendants, or floodlights if voltage matches

Q5: Why choose 3 circuits over 1?

Multi-circuit setups eliminate standalone switches/wires per zone—cost-effective and flexible.

Conclusion

3-circuit CCT adjustable LED track lights merge unparalleled flexibility with energy-saving performance. Whether curating museum exhibits or upgrading a boutique, this technology empowers dynamic, mood-responsive lighting.

 As LED innovation accelerates, these systems will remain pivotal in intelligent space design.

Want to transform your lighting? Let's know your idea, we provide you suitable products and professional guide.
